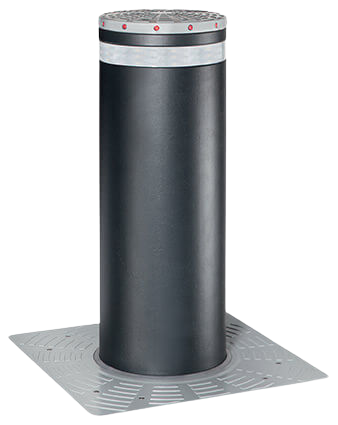

FAAC J355 HA M50 Hydraulic Bollard

FAAC J355 HA M50 Hydraulic Bollard

The automatic J355 HA M50 from FAAC is a crash rated bollard perfect for perimeter protection at high-security facilities like military sites, airports, embassies, consulates, bank and ports etc. The J355 HA M50 hydraulic bollards are taller and stand at 1200mm height off the ground.

Type of operator = Hydraulic operator
Cylinder height from ground = 1,200 mm
Cylinder diameter = 355 mm
Cylinder treatment = Cataphoresis and polyester powder paint, dark grey metallised RAL 7021
Reflective strip height = 55 mm
Standard reflecting strip colour = White
Rising time = ~6 s (*)
Quick rise device = NO
Emergency rising time –
Descent time ~3 s (*)
Release device = optional
Power supply voltage = 220-240V ~ 50/60Hz
Max. power = 3,9 Kw (*)
Hydraulic pump unit protection class = IP67
Type of use = Perimeter protection
Break in resistance = 1.852.000 J
Pit weight = 235 Kg
Traffic bollard weight = 850 Kg
Total weight = 1085 Kg
Operating ambient temperature = -15°C / +55°C
Operating ambient temperature with heater = -40°C / +55°C
Load class (EN 124) = C250 (25t)
