Control System： Integrated Electro-Hydraulic
External housing size：430*430*1130mm/500*500*900mm
Diameter：168mm,219mm,273mm (can be customized)
Storage Environment：10℃~65℃, Waterproof and moisture-proof
The thickness of the bollard：6mm,8mm, and 10mm.12mm,15mm, 30mm (optional)
Structure： With load-bearing steel beam-column, anti-collision steel beam-column, 4 navigation rods;
Integrated electrical mechanism： stroke 600mm, Cylinder outer diameter 60mm, Rod diameter:16mm;
6k Mirror cylinder;
Colorful With LED （Acrylic light circle
Reflective sticker:2 strips
Gang-control interface
It can manually fall if power is cut
Available to reverse operation during rising or falling
The hydraulic drive comes with a hydraulic lock
PLC programming command control system
LCD has both menus in Chinese and English
PLC built-in encryption system.
Description

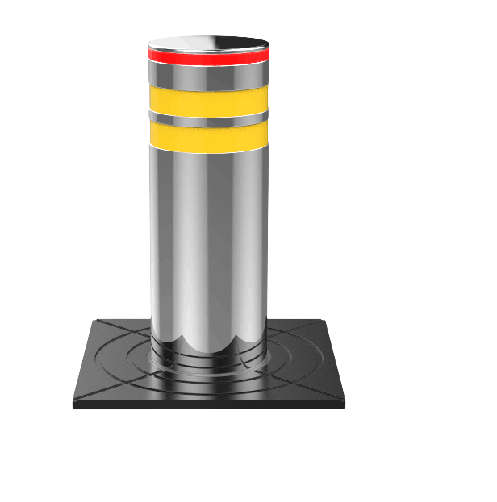

UNIQSCAN Hydraulic Rising Bollard
Passing pressure = ≤80- 120 tons container trucks
Voltage = AC220V 50Hz Integrated
System Dynamic power = 350W Integrated
Rise time = ≤3-4S （adjustable)
Fall time = ≤3-4S （adjustable）
Material = 304 stainless steel
Rising height = 600mm
Waterproof = IP68, double sealed
Running noise = ≤60 dB
Weight = 200 KG approx
Working Temperature = -35℃~75℃（suitable）
Remote control distance = Approx .50m-100m
Solenoid valve voltage = 24V
